      The aircraft propeller blades are manufactured from composite materials. The main components are fiberglass and carbon materials, and epoxy as the binding agent.

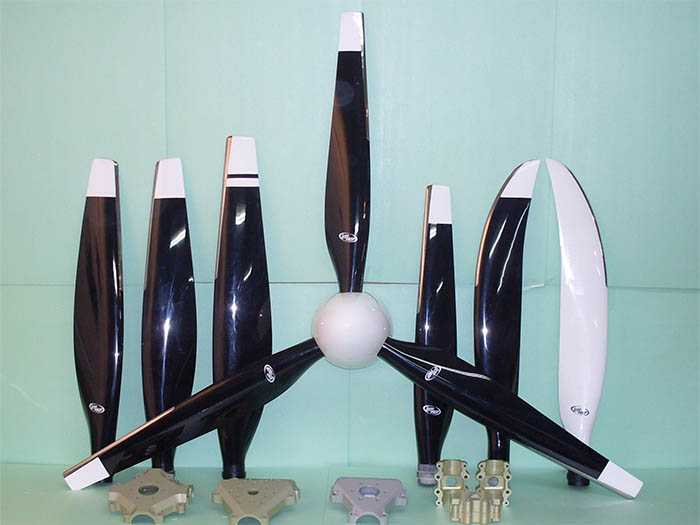

    Specifications of propellers by type, power and engine types

L11

• Left Hand Rotation;
• diameter of the propeller 600 mm (24");
• Horsepower 4-6 HP;
• Color of blade: white or black.

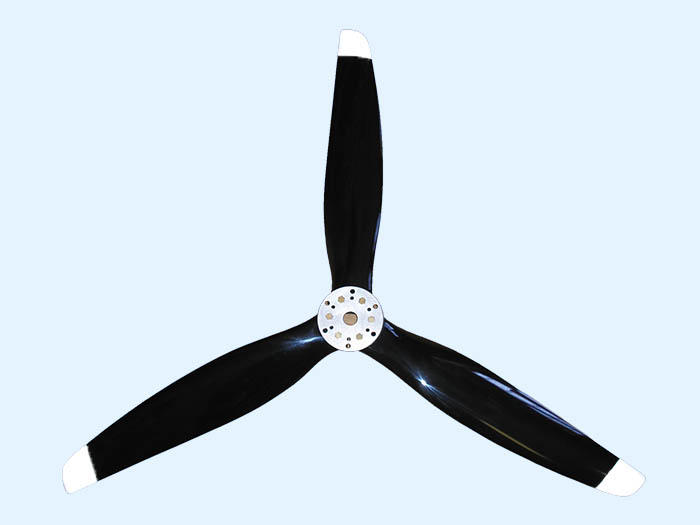

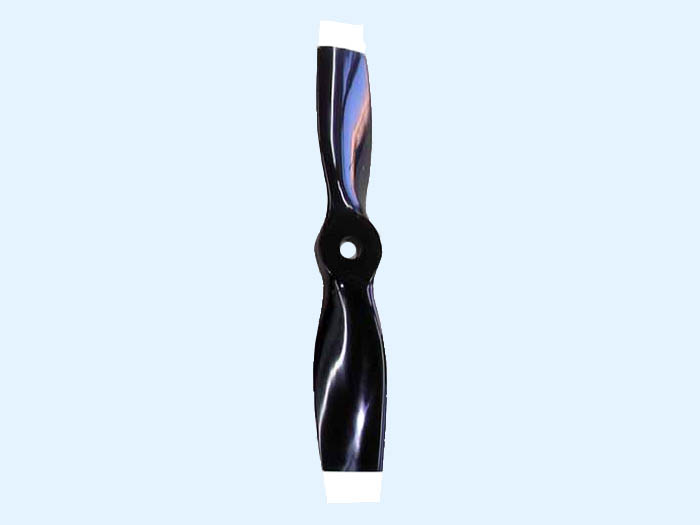

L21/L22

• Left Hand Rotation;
• Fixed Pitch Propeller;
• diameter 3 Blade propeller 1200 mm (47")/1250 mm (49");
• Horsepower 16-25/25-30 HP;
• number of the blades from 2 to 3;
• Color of blade: white or black.

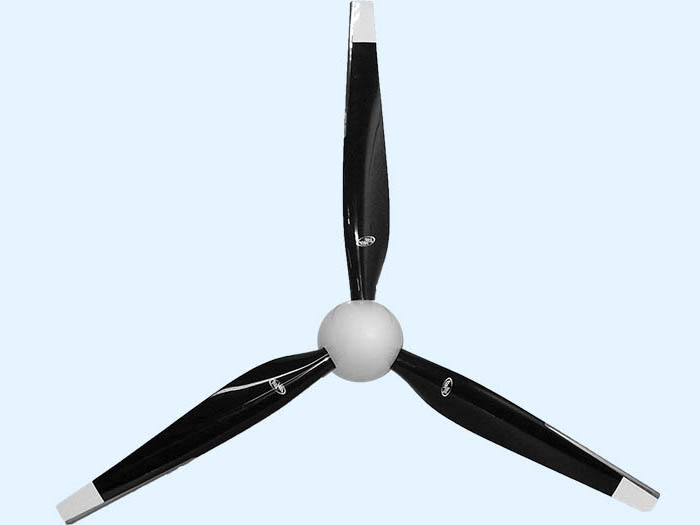

R31

• Right Hand Rotation;
• variable pitch propeller;
• diameter 3 Blade propeller 1400 mm (55");
• Horsepower 35-50 HP;
• number of the blades from 2 to 4;
• Color of blade: white or black.

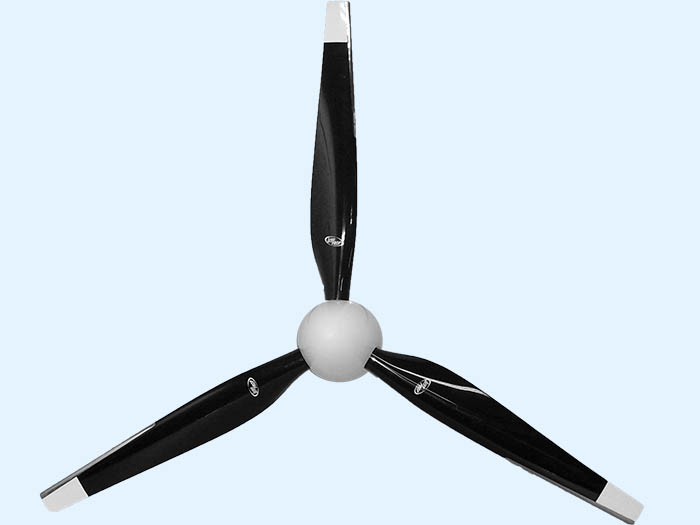

R42/L42

• Right/Left Hand Rotation;
• variable pitch propeller;
• diameter 3 Blade propeller 1610 mm (63");
• Horsepower 40-60 HP;
• number of the blades from 2 to 4;
• Color of blade: white or black.

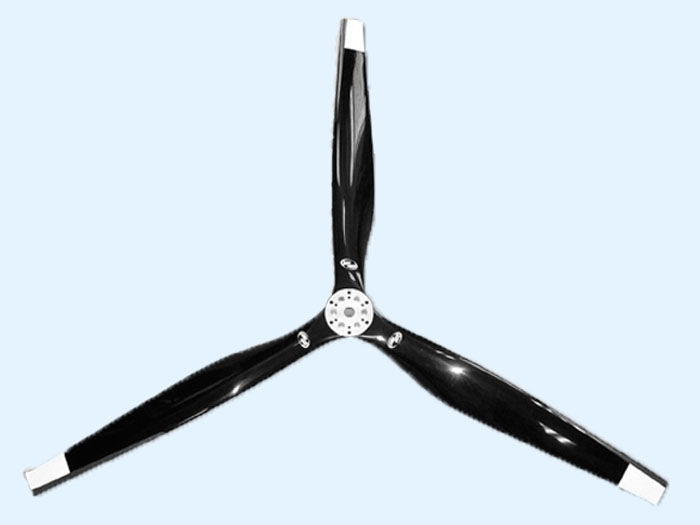

R63

• Right Hand Rotation;
• Fixed Pitch Propeller;
• diameter 3 Blade propeller 1710 mm (67");
• Horsepower 60-80 HP;
• number of the blades from 2 to 3;
• Color of blade: white or black.

R64/L64

• Right/Left Hand Rotation;
• variable pitch propeller;
• diameter 3 Blade propeller 1710 mm (67");
• Horsepower 60-80 HP;
• number of the blades from 2 to 4;
• Color of blade: white or black.

R81/L82

• Right/Left Hand Rotation;
• variable pitch propeller;
• diameter 3 Blade propeller 1750 mm (68")/1730 mm (68");
• Horsepower 60-80 HP;
• number of the blades from 2 to 4;
• Color of blade: white or black.

R83/L83

• Right/Left Hand Rotation;
• variable pitch propeller;
• diameter 3 Blade propeller 1700 mm (67");
• Swept Blade Propeller;
• Horsepower 80-90 HP;
• number of the blades from 2 to 4;
• Color of blade: white or black.

R104/L104

• Right/Left Hand Rotation;
• variable pitch propeller;
• diameter 3 Blade propeller 1750 mm (69");
• Horsepower 90-115 HP;
• number of the blades from 2 to 4;
• Color of blade: white or black.

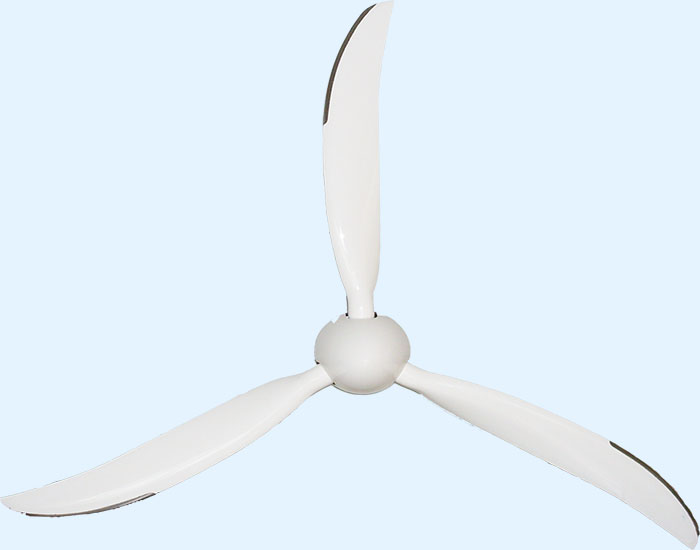

R106/L106

• Right/Left Hand Rotation;
• variable pitch propeller;
• diameter 3 Blade propeller 1750 mm (69");
• Swept Blade Propeller;
• Horsepower 90-115 HP;
• number of the blades from 2 to 4;
• Color of blade: white or black.

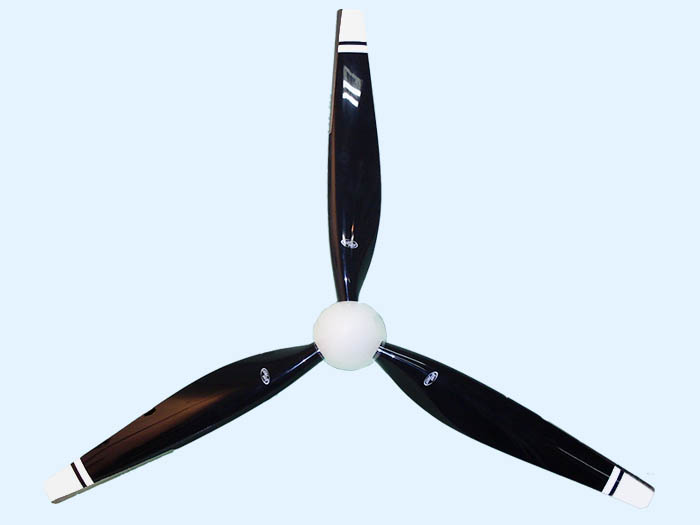

R102/L102

• Right/Left Hand Rotation;
• variable pitch propeller;
• diameter 3 Blade propeller 1860 mm (73");
• Horsepower 90-130 HP;
• number of the blades from 2 to 4;
• Color of blade: white or black.

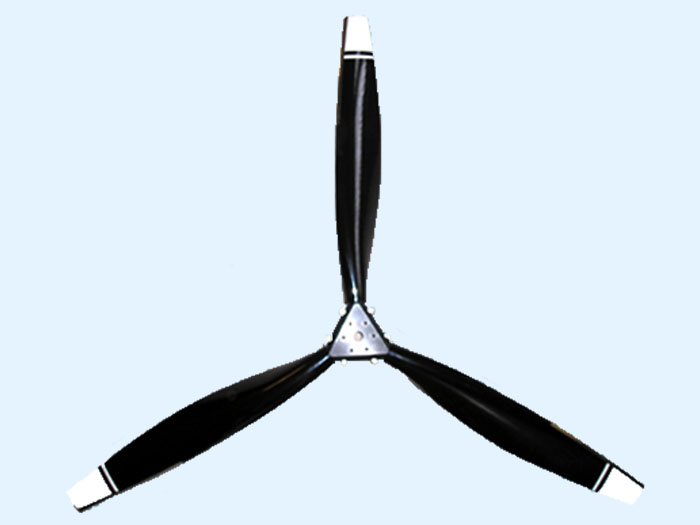

R103

• Right Hand Rotation;
• variable pitch propeller;
• diameter 3 Blade propeller 1680 mm (66");
• Horsepower 100-130 HP;
• number of the blades from 2 to 4;
• Color of blade: white or black.

R105

• Right Hand Rotation;
• variable pitch propeller;
• diameter 3 Blade propeller 1950 mm (77");
• number of the blades from 2 to 4;
• Color of blade: white or black.

R107/L107

• Right/Left Hand Rotation;
• variable pitch propeller;
• diameter 3 Blade propeller 1820 mm (72");
• Swept Blade Propeller;
• number of the blades from 2 to 4;
• Color of blade: white or black.

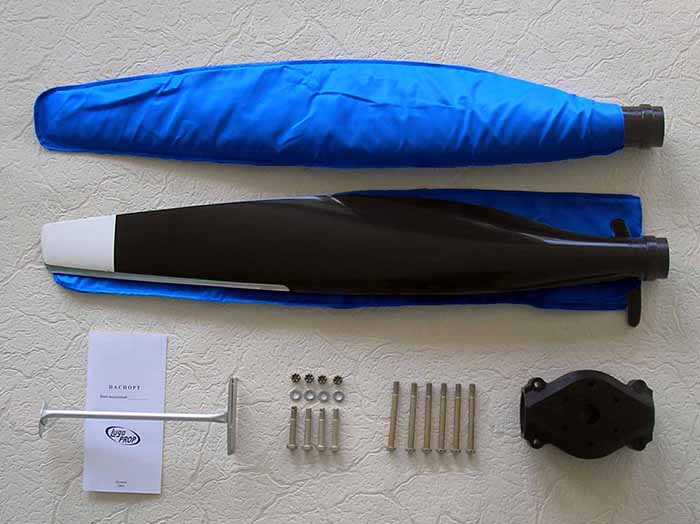

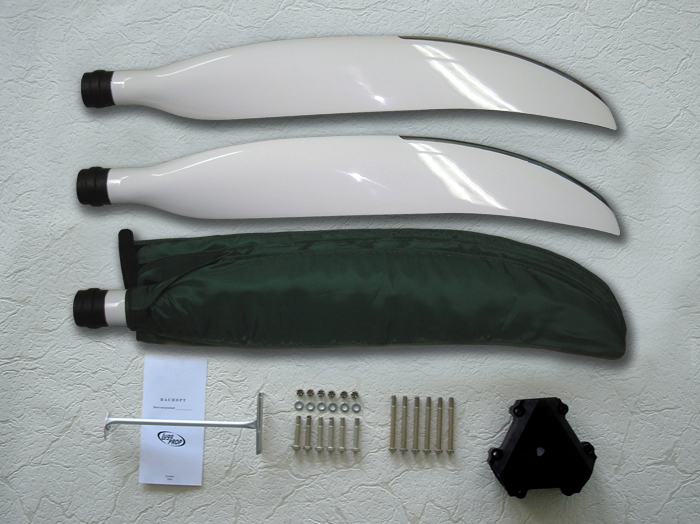

 The packaging of the variable pitch propeller:

• blade hub;
• blades;
• protractor;
• fixing bolts;
• protective cases;
• passport.

The packaging of the fixed pitch propeller:

• blades;
• fixing bolts;
• wedge-shaped liner;
• protective cases;
• passport.

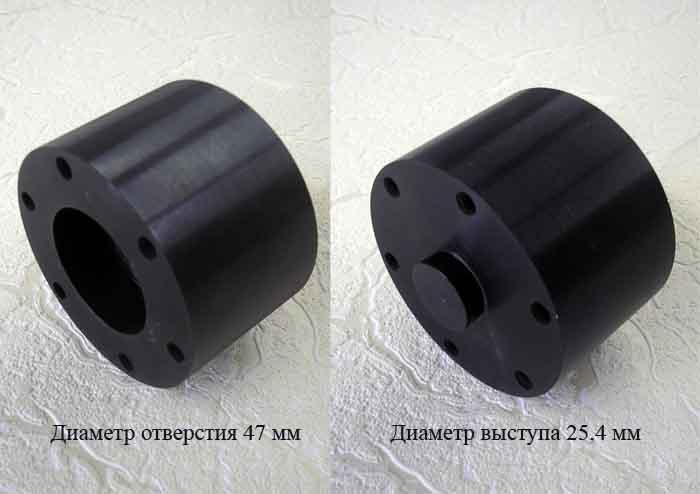

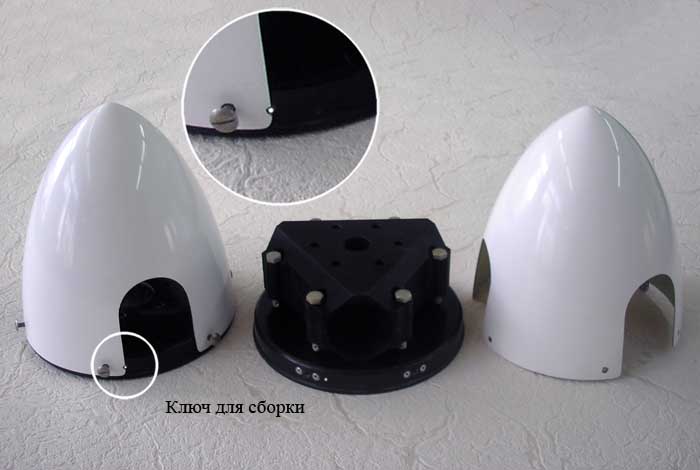

A nose cap can be included with the propeller. Diameter: 202 mm (~7.95″), length: 215 mm(~8.46″), central opening: 47 mm(~1.85″) or 25,5 mm(~1.00″). Only for 2-, 3- and 4-blade propellers.

      Propeller extenders(65 mm, ~2.56″) for Rotax 912.

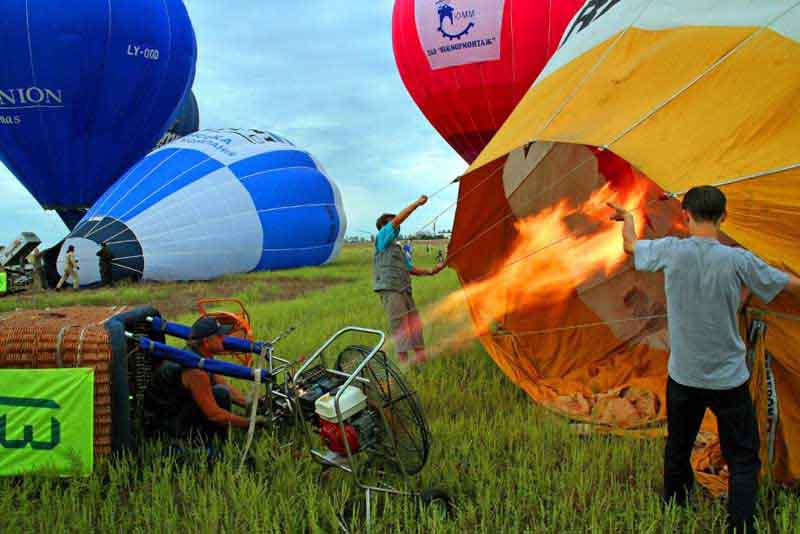

      We also manufacture propellers for air baloon inflation fans.
